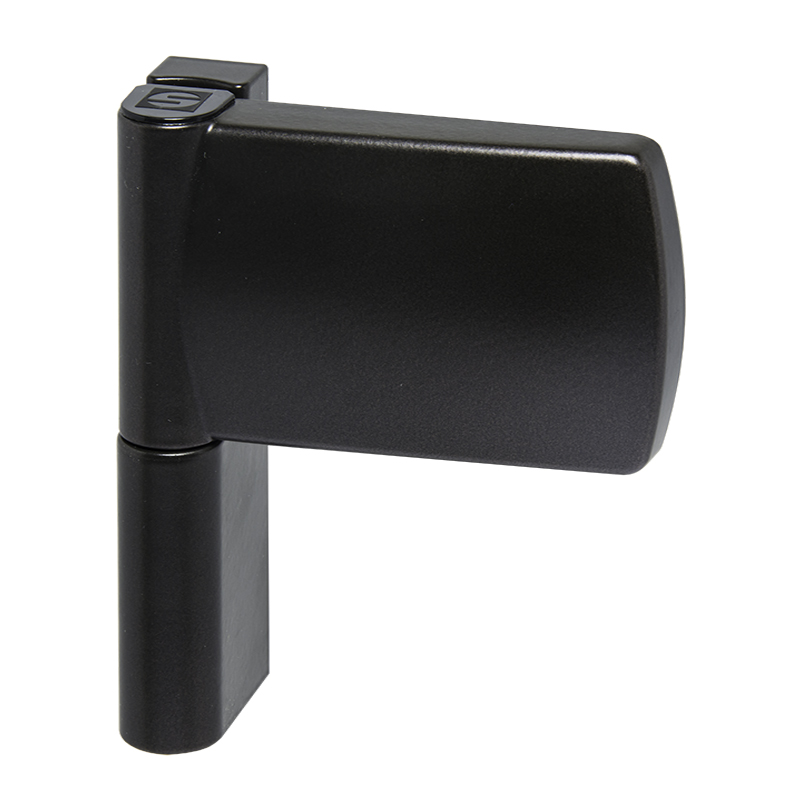

Our hinges m-tec II S and III S offer convincing technology withm tec III s braun
an unbeatable price-performance. The identical hinge variants differ in the size of the sash part. While the hinge II S is suitable for narrow or side entrance door profiles, finds the door hinge III S its use on standard door profiles for main entrance doors.
Both versions have a high-quality steel substructure, are easy to assemble and to adjust perfectly. The hinges are available with or without additional, lateral overlap fixing.



  • DIN rh and lh usable; preassembled ready for installation
  • Certified according to EN 1935 / Hinge class 13 -120 kg
  • three-dimensional adjustable: +/- 4,5 mm horizontal adjustment, +5/-1 mm height adjustment, +/- 1,8 mm locking pressure adjustment
  • Same drill diameter (5,5 mm) for pins and screw holes
  • Assembly optimized fixing screws 45 mm
  • All adjustments with Allen key 4 mm
  • A patented ball-bearing centering device prevents any tilting of the casement
  • Maintenance-free special bearings
